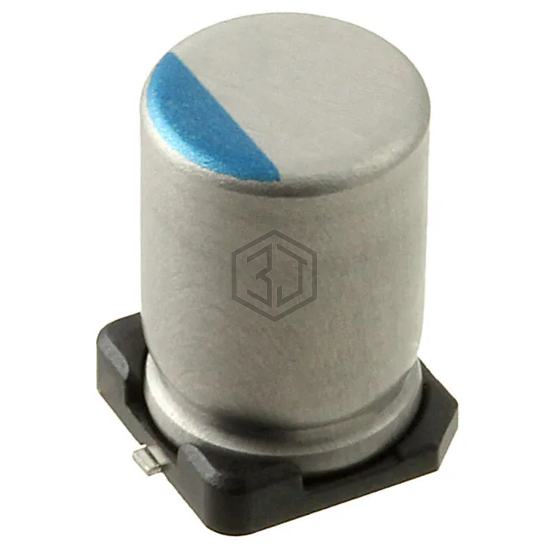

CAP ALUM POLY 100UF 20% 25V SMD
PCR1E101MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,740
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 41mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SVF100M | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 25V SMD | 94% | View |
| PCR1D101MCL1GS | Nichicon | CAP ALUM POLY 100UF 20% 20V SMD | 88% | View |
| GYG1E121MCQ1GS | Nichicon | 25V 120F HYBRID POLYMER CHIP CHI | 86% | View |
| RKS1D101MCNAFEGS | Nichicon | CAP ALUM POLY 100UF 20% 20V SMD | 76% | View |
| A768KS107M1HLAE030 | KEMET | CAP ALUM POLY 100UF 20% 50V SMD | 56% | View |
| MAL218697006E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 100UF 20% 35V SMD | 55% | View |
Submit your RFQ for PCR1E101MCL1GS and get a quote within 24 hours.
