CAP ALUM POLY 68UF 20% 16V SMD

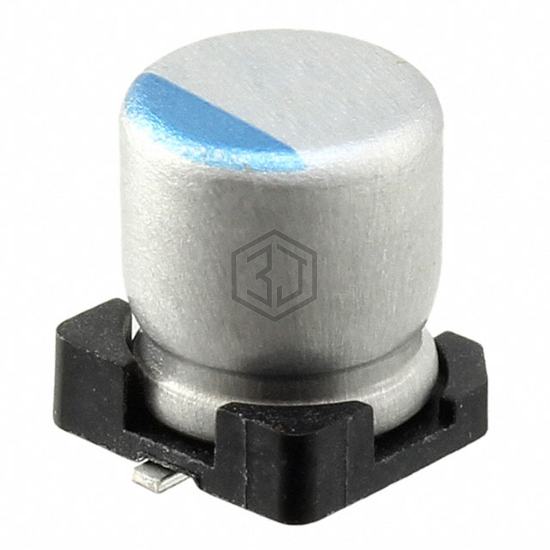

PCR1C680MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,073
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 65mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1C680MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 20SVPK68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 20V SMD | 88% | View |
| RDS1C680MCNAHFGS | Nichicon | CAP ALUM POLY 68UF 20% 16V SMD | 64% | View |
| 63SXV68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 63V SMD | 63% | View |
| 50SVPK68M | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 58% | View |
| PCR1V680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 35V SMD | 58% | View |
| A768KE686M1GLAS038 | KEMET | CAP ALUM POLY 68UF 20% 40V SMD | 54% | View |
