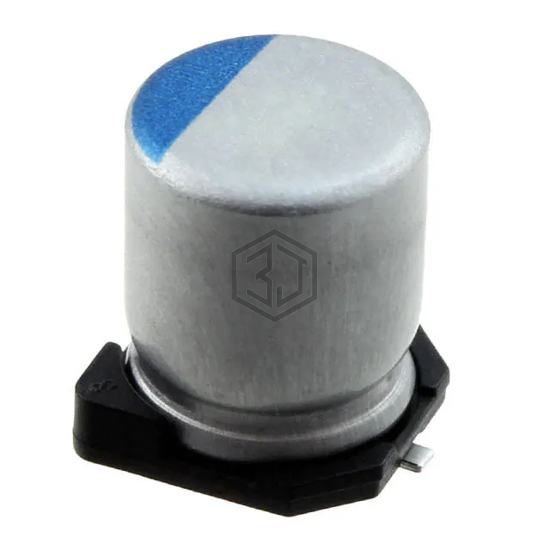

CAP ALUM POLY 220UF 20% 16V SMD
PCR1C221MCL4GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 4,020
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 23mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | - |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1C221MCL4GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCR1C221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 16V SMD | 96% | View |
| A768KE227M1DLAS029 | KEMET | CAP ALUM POLY 220UF 20% 20V SMD | 89% | View |
| MAL218697555E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 220UF 20% 20V SMD | 67% | View |
| PCR1E221MCL6GS | Nichicon | CAP ALUM POLY 220UF 20% 25V SMD | 61% | View |
| APXH2R5ARA221MF60G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 59% | View |
| APXD2R5ARA221MF61G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 59% | View |
