CAP ALUM POLY 680UF 20% 10V SMD

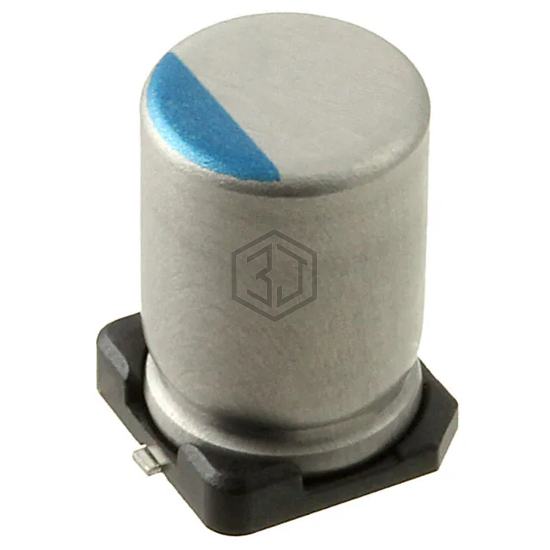

PCR1A681MCL6GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 680UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,996
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
PCR1A681MCL6GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SVT680MX | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 71% | View |
| PCM1D681MCL1GS | Nichicon | CAP ALUM POLY 680UF 20% 20V SMD | 71% | View |
| APXH4R0ARA681MJ80G | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V SMD | 70% | View |
| A768MS687M1CLAV015 | KEMET | CAP ALUM POLY 680UF 20% 20V SMD | 62% | View |
| A768MS687M1DLAE015 | KEMET | CAP ALUM POLY 680UF 20% 20V SMD | 62% | View |
| 16SVPK680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 16V SMD | 54% | View |
Submit your RFQ for PCR1A681MCL6GS and get a quote within 24 hours.
