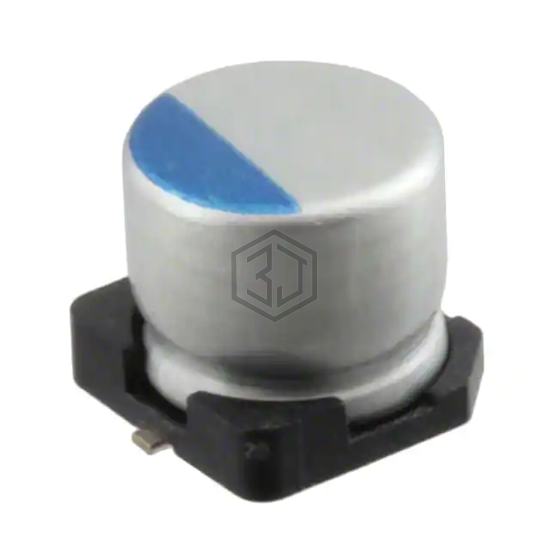

CAP ALUM POLY 470UF 20% 4V SMD
PCJ0G471MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 470UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 5,446
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.95 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RPS0G471MCN1GS | Nichicon | CAP ALUM POLY 470UF 20% 4V SMD | 99% | View |
| 94SVP477X06R3E12 | Vishay Sprague | CAP ALUM POLY 470UF 20% 6.3V SMD | 81% | View |
| 6SVPA470M | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 6.3V SMD | 80% | View |
| APXF2R5ARA471MF80G | United Chemi-Con | CAP ALUM POLY 470UF 20% 2.5V SMD | 79% | View |
| PCJ0E471MCL1GS | Nichicon | CAP ALUM POLY 470UF 20% 2.5V SMD | 78% | View |
| MAL218697303E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 470UF 20% 6.3V SMD | 77% | View |
Submit your RFQ for PCJ0G471MCL1GS and get a quote within 24 hours.
