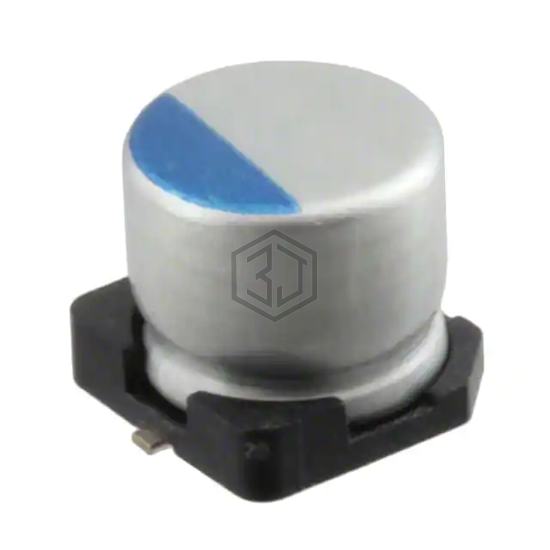

CAP ALUM POLY 180UF 20% 2.5V SMD
PCJ0E181MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 180UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 9,112
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 21mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.67 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCV1D181MCL2GS | Nichicon | CAP ALUM POLY 180UF 20% 20V SMD | 67% | View |
| 6SVPE180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 6.3V SMD | 66% | View |
| VSG1C181MCB6357 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 65% | View |
| RSA1C181MCN1GS | Nichicon | CAP ALUM POLY 180UF 20% 16V SMD | 65% | View |
| 187UVG016MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 180UF 20% 16V SMD | 61% | View |
| A765MU187M1ELAE050 | KEMET | CAP ALUM POLY 180UF 20% 25V SMD | 60% | View |
Submit your RFQ for PCJ0E181MCL1GS and get a quote within 24 hours.
