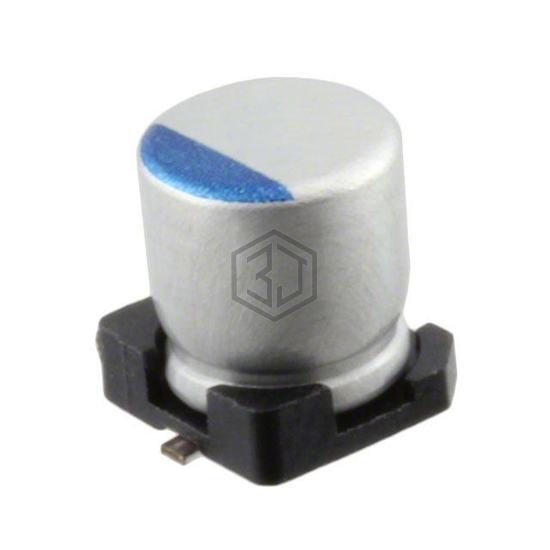

CAP ALUM POLY 1200UF 2.5V SMD
PCJ0E122MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 1200UF 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 4,426
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A765KN128M0ELAE012 | KEMET | CAP ALUM POLY 1200UF 2.5V SMD | 98% | View |
| MAL218097258E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 1200UF 2.5V SMD | 98% | View |
| 2SVPE1200M | Panasonic Electronic Components | CAP ALUM POLY 1200UF 2.5V SMD | 97% | View |
| APXE4R0ARA122MHC0G | United Chemi-Con | CAP ALUM POLY 1200UF 20% 4V SMD | 77% | View |
| RHS0G122MCN1GS | Nichicon | CAP ALUM POLY 1200UF 20% 4V SMD | 77% | View |
| PCG0G122MCL1GS | Nichicon | CAP ALUM POLY 1200UF 20% 4V SMD | 75% | View |
