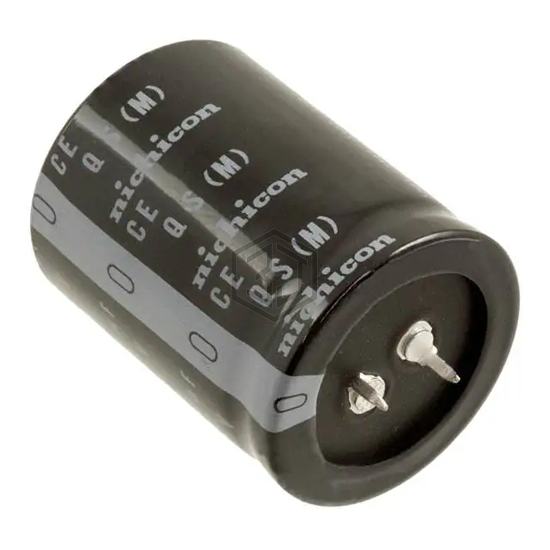

CAP ALUM 560UF 20% 420V SNAP
LQSW6561MELC45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 420V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 420 V, package / case Radial, Can - Snap-In.
In Stock: 8,515
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.003 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMM401VSN561MA45S | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 98% | View |
| LGG2E561MELA35 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 69% | View |
| ELXG251VNN561MR40U | United Chemi-Con | CAP ALUM 560UF 20% 250V SNAP | 67% | View |
| EEU-FR1J561SB | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V RADIAL | 65% | View |
| EKMH201VSN561MQ35S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 65% | View |
| 30D567M050EH2A | Vishay Sprague | CAP ALUM 560UF 20% 50V AXIAL | 56% | View |
Submit your RFQ for LQSW6561MELC45 and get a quote within 24 hours.
