CAP ALUM 100UF 20% 450V SNAP

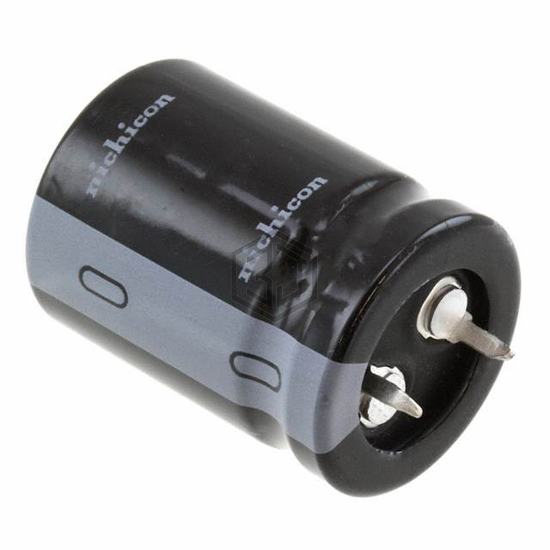

LQS2W101MELZ30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 690 mA @ 120 Hz |
| Ripple Current @ High Frequency | 986.7 mA @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2H101MELB25 | Nichicon | CAP ALUM 100UF 20% 500V SNAP | 94% | View |
| EPAG421ELL101ML40S | United Chemi-Con | CAP ALUM 100UF 20% 420V RADIAL | 93% | View |
| EEU-EE2V101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 350V RADIAL | 79% | View |
| UCY2E101MHD1TN | Nichicon | CAP ALUM 100UF 20% 250V RADIAL | 72% | View |
| 100ZLJ100MG412.5X16 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 69% | View |
| EEU-EE2D101S | Panasonic Electronic Components | CAP ALUM 100UF 20% 200V RADIAL | 66% | View |
