CAP ALUM 470UF 20% 400V SNAP

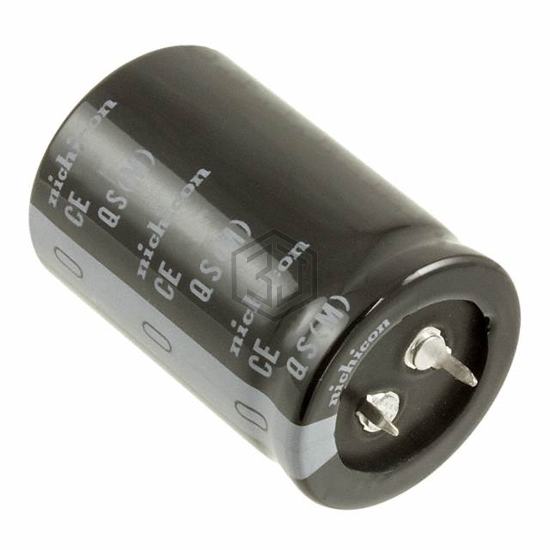

LQS2G471MELB45 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,527
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.002 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXS451VSN471MA40S | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 85% | View |
| EKMM251VNN471MQ35S | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 80% | View |
| 200VXR470MEFCSN30X25 | Rubycon | CAP ALUM 470UF 20% 200V SNAP | 73% | View |
| PEG124HF3470QE4 | KEMET | CAP ALUM 470UF 20% 25V AXIAL | 57% | View |
| MAL211818471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V AXIAL | 56% | View |
| UBW1J471MHD | Nichicon | CAP ALUM 470UF 20% 63V RADIAL | 51% | View |
Submit your RFQ for LQS2G471MELB45 and get a quote within 24 hours.
