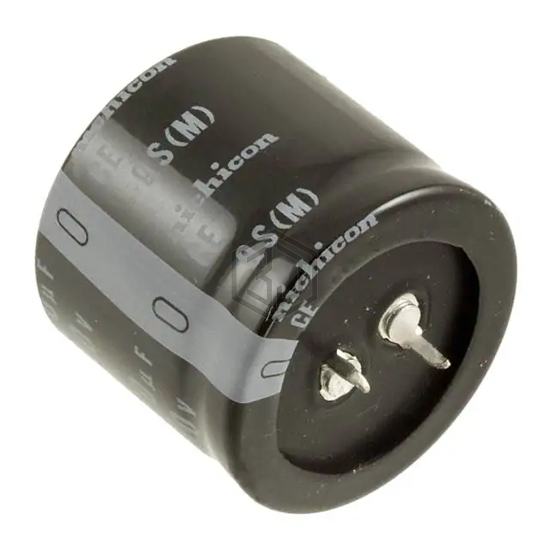

CAP ALUM 390UF 20% 400V SNAP
LQS2G391MELC30 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,474
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.859 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215976391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 400V SNAP | 100% | View |
| HU2W391MCZS4WPEC | AIC tech Inc. | CAP ALUM 390UF 20% 450V SNAP | 92% | View |
| 350VXS390MEFC35X30 | Rubycon | CAP ALUM 390UF 20% 350V SNAP | 84% | View |
| LAR2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 80% | View |
| B43254B1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 73% | View |
| B43254A2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 72% | View |
Submit your RFQ for LQS2G391MELC30 and get a quote within 24 hours.
