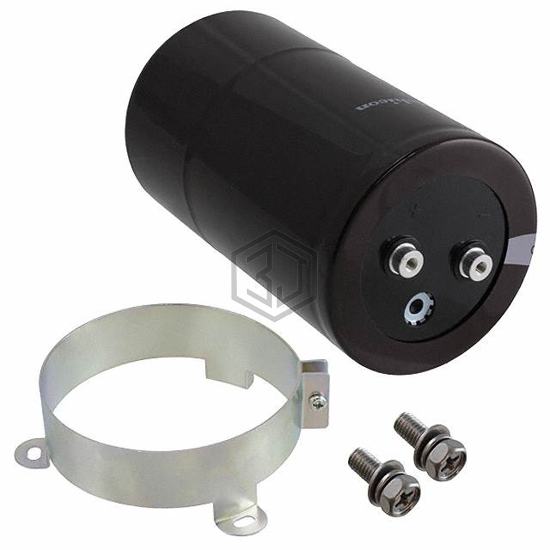

CAP ALUM 8200UF 20% 450V SCREW
LQR2W822MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 8200UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 36.54 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.024" (153.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2W822MSEJBB | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 93% | View |
| LQR2G822MSEHBB | Nichicon | CAP ALUM 8200UF 20% 400V SCREW | 92% | View |
| B43723B9828M000 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 400V SCREW | 91% | View |
| LNK2V822MSEJ | Nichicon | CAP ALUM 8200UF 20% 350V SCREW | 88% | View |
| ALS81C822QP450 | KEMET | CAP ALUM 8200UF 20% 450V SCREW | 85% | View |
| LNK2V822MSEHBB | Nichicon | CAP ALUM 8200UF 20% 350V SCREW | 82% | View |
