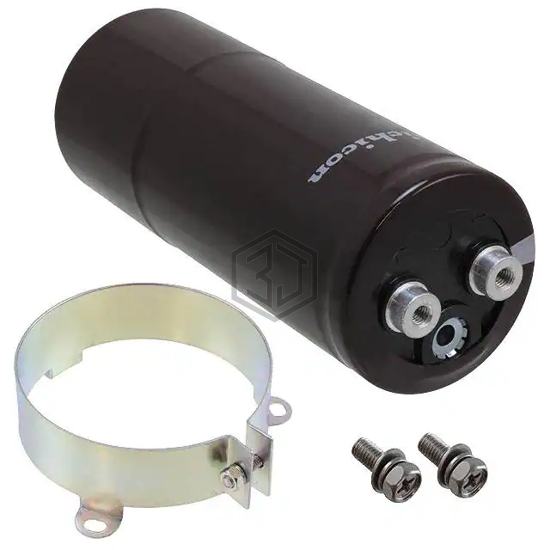

CAP ALUM 2200UF 20% 450V SCREW
LQR2W222MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.18 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210417222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 450V SCREW | 96% | View |
| 3186FC222M400MPC1 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 400V SCREW | 92% | View |
| B43455B5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 91% | View |
| LNX2W222MSEHBB | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 90% | View |
| LNX2L222MSEH | Nichicon | CAP ALUM 2200UF 20% 550V SCREW | 89% | View |
| E32D201HPN222TDB7U | United Chemi-Con | CAP ALUM 2200UF 200V SCREW | 56% | View |
Submit your RFQ for LQR2W222MSEF and get a quote within 24 hours.
