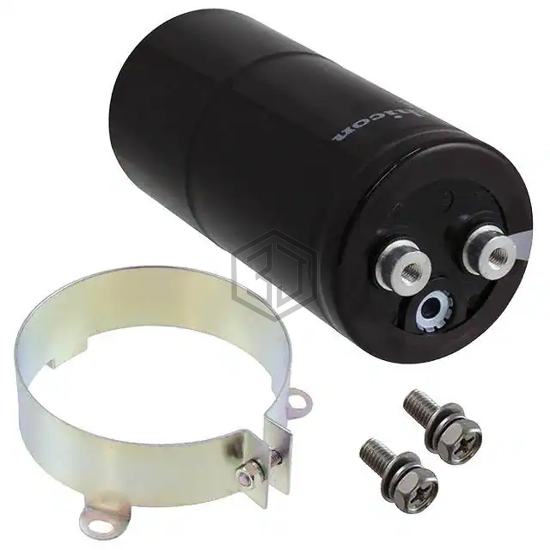

CAP ALUM 1800UF 20% 450V SCREW
LQR2W182MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,883
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 10.36 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.449" (113.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250117182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 450V SCREW | 98% | View |
| E37X451HPN182MCB7U | United Chemi-Con | CAP ALUM 1800UF 20% 450V SCREW | 96% | View |
| LNK2G182MSEFBB | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 96% | View |
| LNUN7182MSEGBB | Nichicon | CAP ALUM 1800UF 20% 525V SCREW | 92% | View |
| CGS182T450V5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 450V SCREW | 87% | View |
| ERHB631LGC182MDC5U | United Chemi-Con | CAP ALUM 1800UF 20% 630V SCREW | 84% | View |
Submit your RFQ for LQR2W182MSEF and get a quote within 24 hours.
