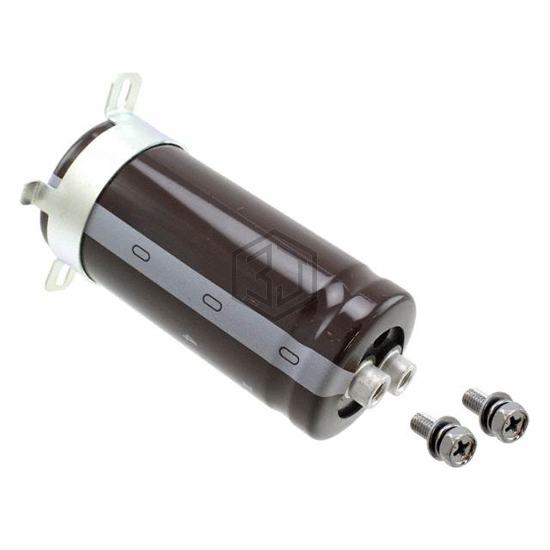

CAP ALUM 820UF 20% 350V SCREW
LQR2V821MSEC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 820UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.62 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQR2G821MSECBN | Nichicon | CAP ALUM 820UF 20% 400V SCREW | 86% | View |
| MLP821M250EB1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 250V FLATPACK | 85% | View |
| LQR2W821MSECBB | Nichicon | CAP ALUM 820UF 20% 450V SCREW | 84% | View |
| MLP821M250EB1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 250V FLATPACK | 78% | View |
| ALS80A821DE400 | KEMET | CAP ALUM 820UF 20% 400V SCREW | 76% | View |
| B43564B6827M000 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 500V SCREW | 75% | View |
Submit your RFQ for LQR2V821MSEC and get a quote within 24 hours.
