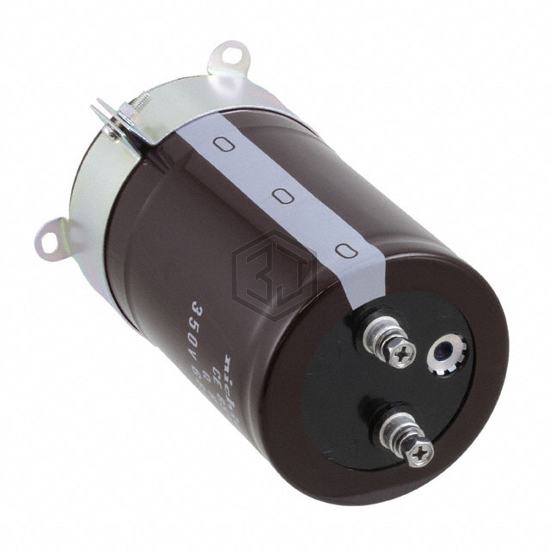

CAP ALUM 6800UF 20% 350V SCREW
LQR2V682MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 32.06 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ERWH351LGC682MEA5U | Chemi-Con | SCREW MOUNT | 97% | View |
| MAL210217682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 450V SCREW | 85% | View |
| B43564A9688M7 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 85% | View |
| B43564A5688M3 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 450V SCREW | 85% | View |
| MAL210482682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 200V SCREW | 64% | View |
| E32D251HLN682MCD0U | United Chemi-Con | CAP ALUM 6800UF 20% 250V SCREW | 56% | View |
Submit your RFQ for LQR2V682MSEH and get a quote within 24 hours.
