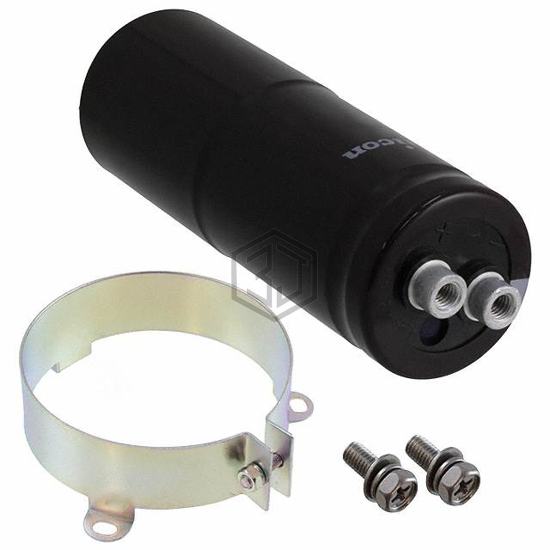

CAP ALUM 1000UF 20% 350V SCREW
LQR2V102MSEC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,422
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.02 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43454A9108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 400V SCREW | 92% | View |
| LNX2W102MSEFBB | Nichicon | CAP ALUM 1000UF 20% 450V SCREW | 89% | View |
| ALS81H102DB250 | KEMET | CAP ALUM 1000UF 20% 250V SCREW | 81% | View |
| B43761A6108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 500V SCREW | 79% | View |
| MAL210227102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 78% | View |
| LNT2G102MSEF | Nichicon | CAP ALUM 1000UF 20% 400V SCREW | 75% | View |
Submit your RFQ for LQR2V102MSEC and get a quote within 24 hours.
