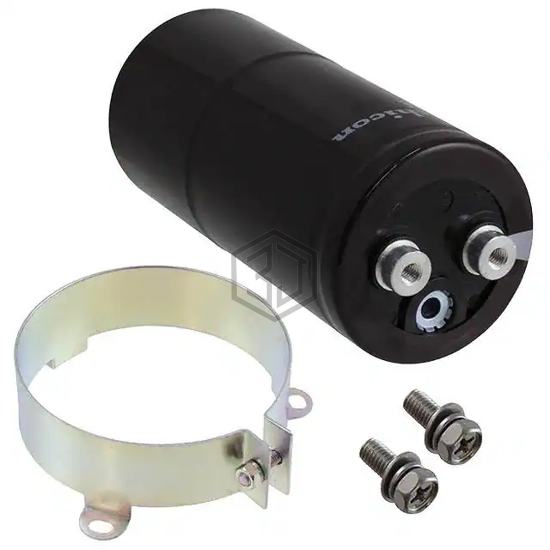

CAP ALUM 2200UF 20% 400V SCREW
LQR2G222MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,939
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.56 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.449" (113.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43564A0228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 100% | View |
| 350LSU2200M51X106 | Rubycon | CAP ALUM 2200UF 20% 350V SCREW | 91% | View |
| B43742A9228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 90% | View |
| LNX2J222MSEJBB | Nichicon | CAP ALUM 2200UF 20% 630V SCREW | 85% | View |
| MAL250019222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 500V SCREW | 81% | View |
| LNX2L222MSEHBN | Nichicon | CAP ALUM 2200UF 20% 550V SCREW | 78% | View |
