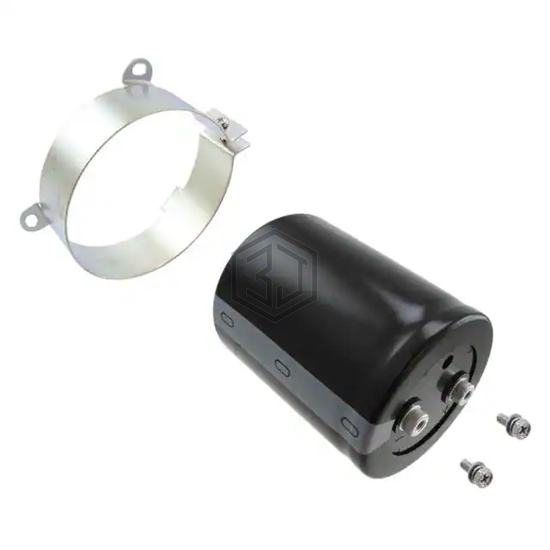

CAP ALUM 6800UF 20% 350V SCREW
LNY2V682MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 26.32 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.740" (95.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250156682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 400V SCREW | 92% | View |
| B43724A9688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 400V SCREW | 89% | View |
| B43724A5688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 450V SCREW | 82% | View |
| B43725A5688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 450V SCREW | 77% | View |
| MAL210412682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 200V SCREW | 67% | View |
| E36D251HPN682MCE3U | United Chemi-Con | CAP ALUM 6800UF 20% 250V SCREW | 62% | View |
Submit your RFQ for LNY2V682MSEH and get a quote within 24 hours.
