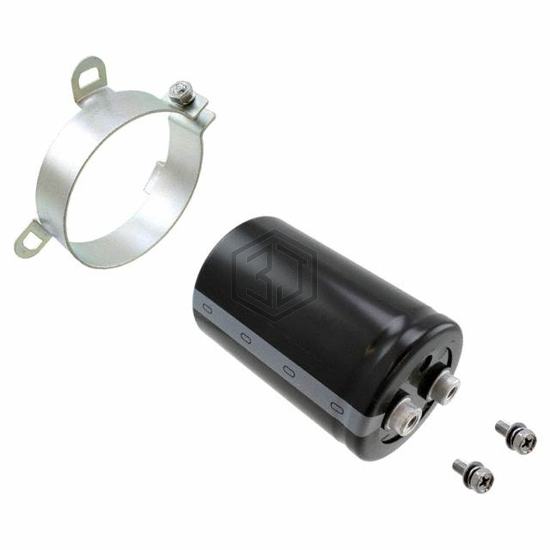

CAP ALUM 2200UF 20% 350V SCREW
LNY2V222MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,168
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.54 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.150" (80.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43725A9228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 94% | View |
| E36D401CJN222MC92U | United Chemi-Con | CAP ALUM 2200UF 20% 400V SCREW | 91% | View |
| LNC2G222MSEG | Nichicon | CAP ALUM 2200UF 20% 400V SCREW | 89% | View |
| DCMC222T450CC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 450V SCREW | 84% | View |
| B43707A9228M600 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 82% | View |
| E37L501CPN222MDA5U | United Chemi-Con | CAP ALUM 2200UF 20% 500V SCREW | 80% | View |
