CAP ALUM 12000UF 20% 350V SCREW

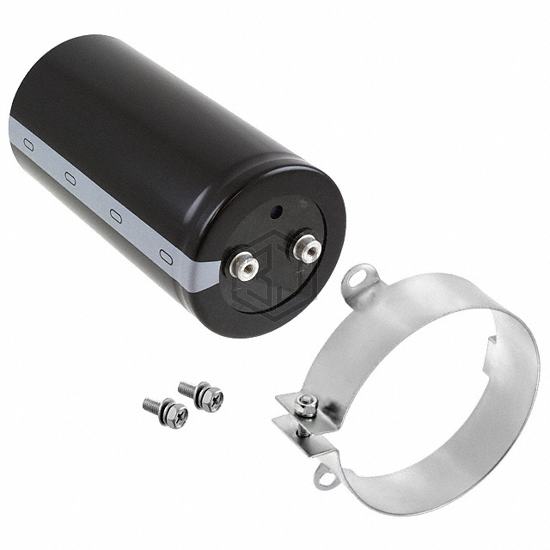

LNY2V123MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.6 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.906" (150.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37X351CPN123MFF5U | United Chemi-Con | CAP ALUM 12000UF 20% 350V SCREW | 91% | View |
| ALS80P123NS400 | KEMET | CAP ALUM 12000UF 20% 400V SCREW | 84% | View |
| ALS81G123NS400 | KEMET | CAP ALUM 12000UF 20% 400V SCREW | 84% | View |
| ALS71C123MF200 | KEMET | CAP ALUM 12000UF 20% 200V SCREW | 65% | View |
| E36D201CPN123TEM9U | United Chemi-Con | CAP ALUM 12000UF 200V SCREW | 64% | View |
| E36D161LPN123TDA5U | United Chemi-Con | CAP ALUM 12000UF 160V SCREW | 56% | View |
Submit your RFQ for LNY2V123MSEH and get a quote within 24 hours.
