CAP ALUM 10000UF 20% 350V SCREW

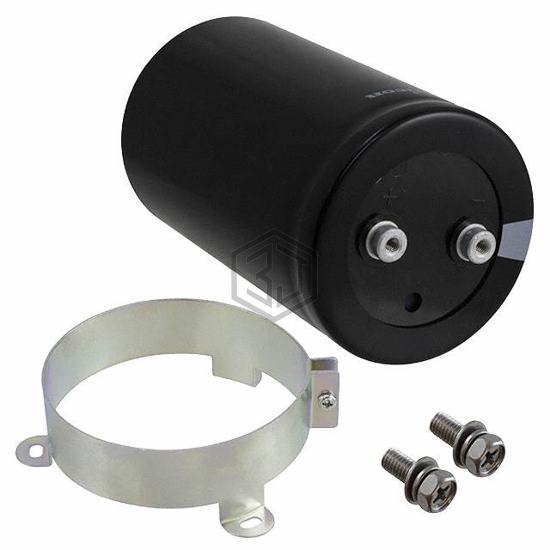

LNY2V103MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,886
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 32.9 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.921" (125.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210235103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 350V SCREW | 100% | View |
| B43703A9109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 400V SCREW | 94% | View |
| LNY2G103MSEHBB | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 94% | View |
| LNC2V103MSEJBB | Nichicon | CAP ALUM 10000UF 20% 350V SCREW | 93% | View |
| ALS70H103QM400 | KEMET | CAP ALUM 10000UF 20% 400V SCREW | 91% | View |
| ALS70A103QP450 | KEMET | CAP ALUM 10000UF 20% 450V SCREW | 90% | View |
Submit your RFQ for LNY2V103MSEH and get a quote within 24 hours.
