CAP ALUM 1000UF 20% 450V SCREW

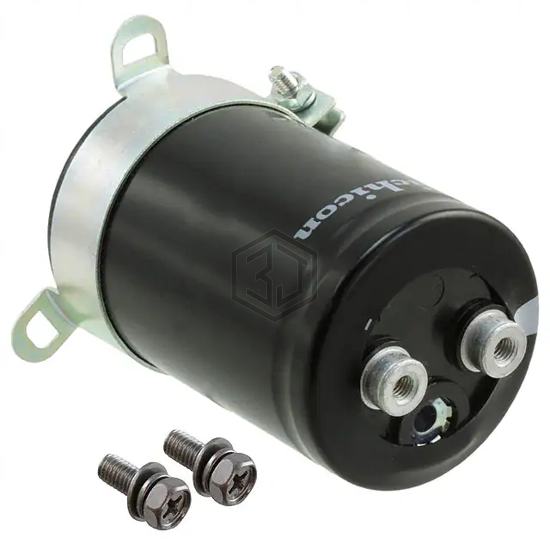

LNX2W102MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,846
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.28 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210457102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 99% | View |
| MAL210267102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 95% | View |
| LNT2H102MSEF | Nichicon | CAP ALUM 1000UF 20% 500V SCREW | 92% | View |
| LNK2V102MSEFBN | Nichicon | CAP ALUM 1000UF 20% 350V SCREW | 89% | View |
| LNX2V102MSEF | Nichicon | CAP ALUM 1000UF 20% 350V SCREW | 86% | View |
| LQR2V102MSECBB | Nichicon | CAP ALUM 1000UF 20% 350V SCREW | 83% | View |
Submit your RFQ for LNX2W102MSEF and get a quote within 24 hours.
