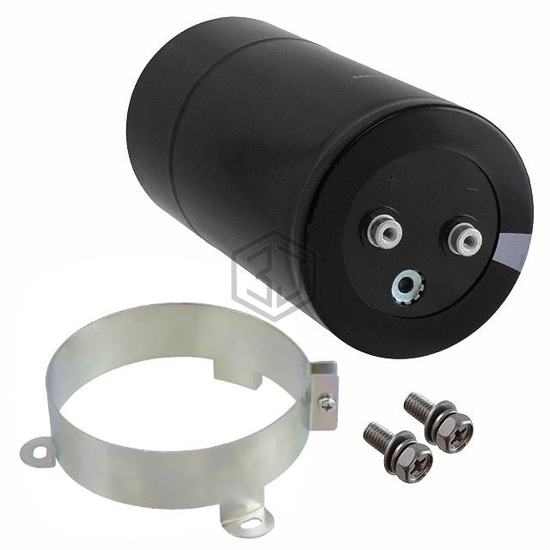

CAP ALUM 4700UF 20% 550V SCREW
LNX2L472MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,772
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.5 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250179472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 500V SCREW | 96% | View |
| B43701A5478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 450V SCREW | 85% | View |
| B43564A9478M003 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 85% | View |
| MAL210245472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 350V SCREW | 79% | View |
| B43706B6478M600 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 500V SCREW | 77% | View |
| MAL250037472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 450V SCREW | 67% | View |
Submit your RFQ for LNX2L472MSEJ and get a quote within 24 hours.
