CAP ALUM 1500UF 20% 550V SCREW

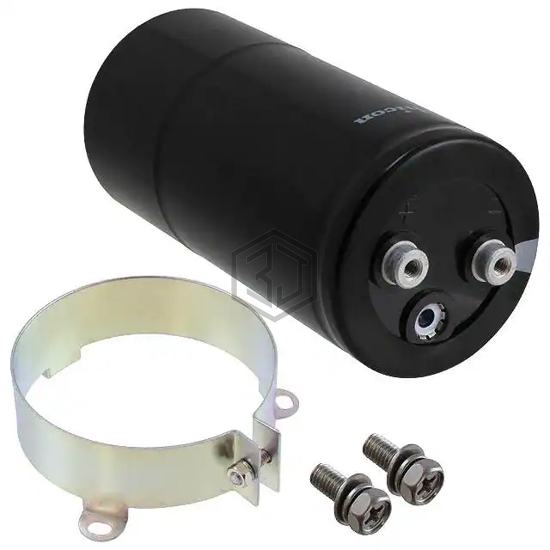

LNX2L152MSEG is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,039
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LSG1500M51X118 | Rubycon | CAP ALUM 1500UF 20% 450V SCREW | 88% | View |
| ERHB701LGC152MEB5M | Chemi-Con | CAP ALUM 1.5MF 20% 700V SCREW CH | 88% | View |
| B43564A5158M003 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 450V SCREW | 87% | View |
| MAL210257152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 450V SCREW | 86% | View |
| CG152U075R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 75V SCREW | 70% | View |
| E36D161LPN152TA67U | United Chemi-Con | CAP ALUM 1500UF 160V SCREW | 56% | View |
