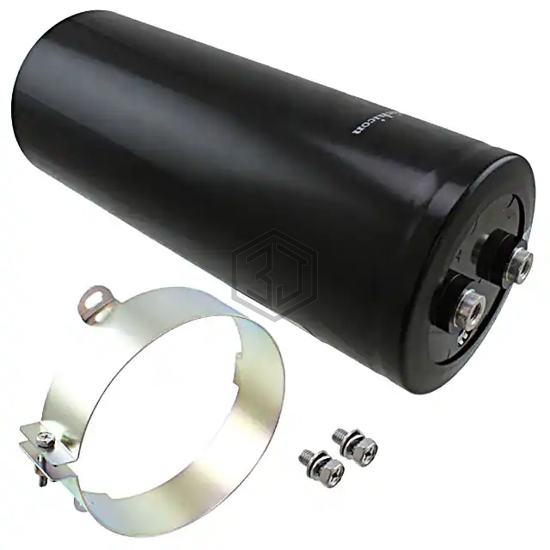

CAP ALUM 10000UF 20% 550V SCREW
LNX2L103MSEK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 550V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 550 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,721
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 550 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25.2 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 10.000" (254.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS70A103NT500 | KEMET | CAP ALUM 10000UF 20% 500V SCREW | 91% | View |
| LNC2G103MSEHBN | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 82% | View |
| LNK2V103MSEHBN | Nichicon | CAP ALUM 10000UF 20% 350V SCREW | 81% | View |
| DCMC103M400FE5F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 400V SCREW | 80% | View |
| ALS80C103QP400 | KEMET | CAP ALUM 10000UF 20% 400V SCREW | 78% | View |
| LQR2V103MSEHBB | Nichicon | CAP ALUM 10000UF 20% 350V SCREW | 75% | View |
Submit your RFQ for LNX2L103MSEK and get a quote within 24 hours.
