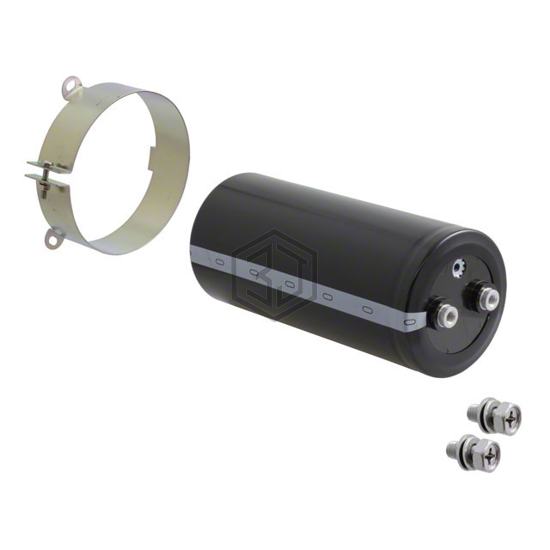

CAP ALUM 12000UF 20% 500V SCREW
LNX2H123MSEK is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,858
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27.8 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 8.780" (223.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS70G123NS450 | KEMET | CAP ALUM 12000UF 20% 450V SCREW | 88% | View |
| LNU2G123MSEJBN | Nichicon | CAP ALUM 12000UF 20% 400V SCREW | 88% | View |
| LNC2V123MSEHBN | Nichicon | CAP ALUM 12000UF 20% 350V SCREW | 85% | View |
| B43456A4129M7 | EPCOS - TDK Electronics | CAP ALUM 12000UF 20% 350V SCREW | 85% | View |
| LQR2V123MSEJ | Nichicon | CAP ALUM 12000UF 20% 350V SCREW | 77% | View |
| ALS70H123MF200 | KEMET | CAP ALUM 12000UF 20% 200V SCREW | 55% | View |
Submit your RFQ for LNX2H123MSEK and get a quote within 24 hours.
