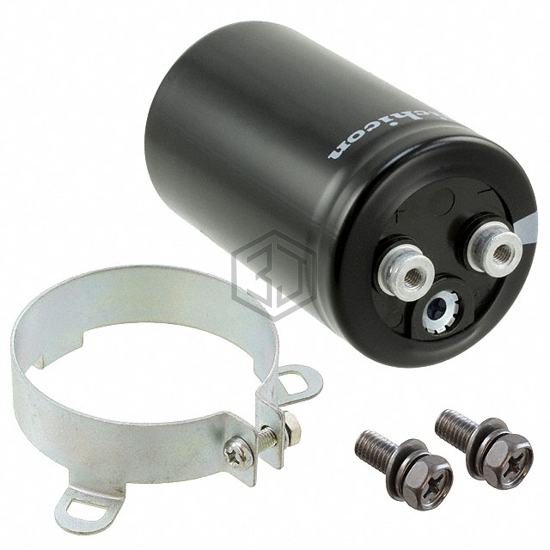

CAP ALUM 680UF 20% 525V SCREW
LNUN7681MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 525V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 525 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 525 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.16 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.346" (85.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNUN7681MSEFBN | Nichicon | CAP ALUM 680UF 20% 525V SCREW | 100% | View |
| MAL210466681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 400V SCREW | 87% | View |
| ALS80A681DE450 | KEMET | CAP ALUM 680UF 20% 450V SCREW | 82% | View |
| ALS81A681DE450 | KEMET | CAP ALUM 680UF 20% 450V SCREW | 82% | View |
| B43750A5687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 450V SCREW | 69% | View |
| MAL210453681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 250V SCREW | 58% | View |
