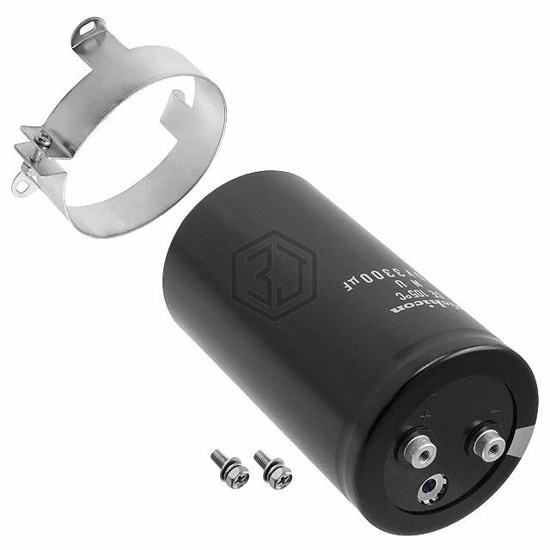

CAP ALUM 3300UF 20% 525V SCREW
LNUN7332MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 525V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 525 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,694
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 525 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 16.94 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.630" (143.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H332MSEGBB | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 94% | View |
| MAL210417332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 450V SCREW | 94% | View |
| ALS80C332LM450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 89% | View |
| ALS80C332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 89% | View |
| MAL210446332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 400V SCREW | 88% | View |
| MAL210445332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 350V SCREW | 83% | View |
Submit your RFQ for LNUN7332MSEH and get a quote within 24 hours.
