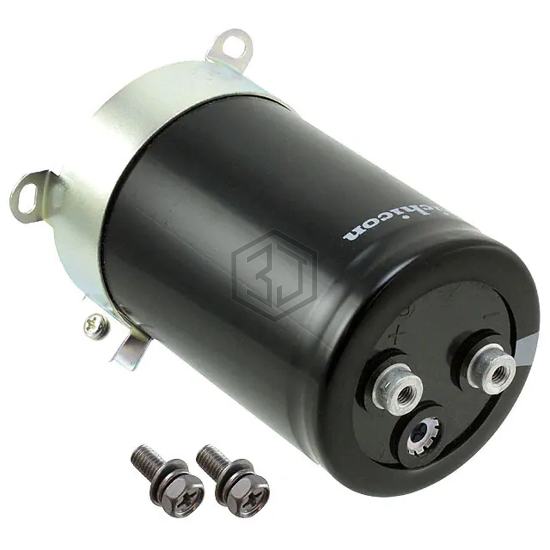

CAP ALUM 680UF 20% 450V SCREW
LNT2W681MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,974
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.96 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT2W681MSEFBN | Nichicon | CAP ALUM 680UF 20% 450V SCREW | 74% | View |
| LNT2G681MSEF | Nichicon | CAP ALUM 680UF 20% 400V SCREW | 69% | View |
| LNT2G681MSEFBN | Nichicon | CAP ALUM 680UF 20% 400V SCREW | 69% | View |
| LNUN7681MTEF | Nichicon | CAP ALUM 680UF 20% 525V SCREW | 69% | View |
| LNT2H681MSEFBN | Nichicon | CAP ALUM 680UF 20% 500V SCREW | 69% | View |
| ALS81H681DE450 | KEMET | CAP ALUM 680UF 20% 450V SCREW | 68% | View |
Submit your RFQ for LNT2W681MSEF and get a quote within 24 hours.
