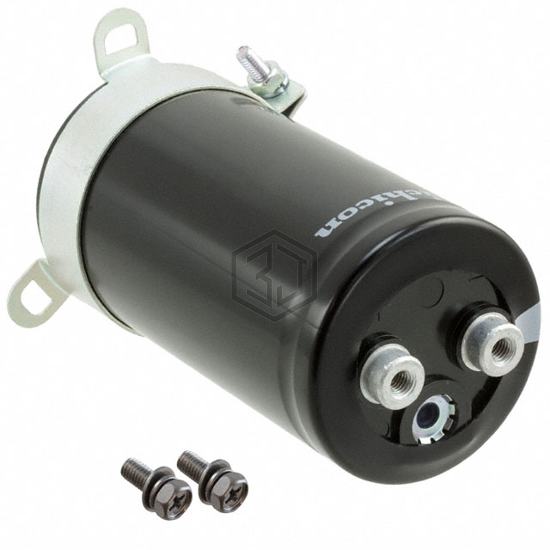

CAP ALUM 3300UF 20% 450V SCREW
LNT2W332MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,823
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.94 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.236" (133.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 550C332T450DE2BS | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 450V SCREW | 100% | View |
| 400LSG3300MDC464X99 | Rubycon | CAP ALUM 3300UF 20% 400V SCREW | 92% | View |
| LNT2G332MSEGBN | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 91% | View |
| LNT2H332MSEHBN | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 84% | View |
| LNU2G332MTEH | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 84% | View |
| LNU2G332MSEHBB | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 84% | View |
