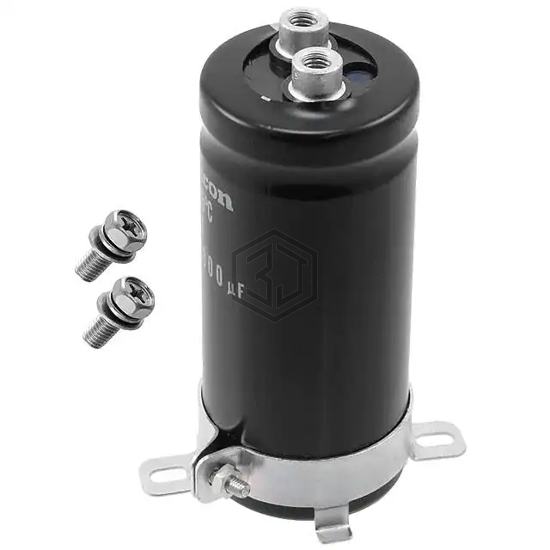

CAP ALUM 220UF 20% 450V SCREW
LNT2W221MSEC is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,694
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210457221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SCREW | 98% | View |
| MAL210417221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 450V SCREW | 98% | View |
| E32D451LPN231TAA5U | United Chemi-Con | CAP ALUM 230UF 450V SCREW | 96% | View |
| MAL210456221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SCREW | 95% | View |
| MAL210416221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SCREW | 95% | View |
| LNT2G221MSEC | Nichicon | CAP ALUM 220UF 20% 400V SCREW | 91% | View |
Submit your RFQ for LNT2W221MSEC and get a quote within 24 hours.
