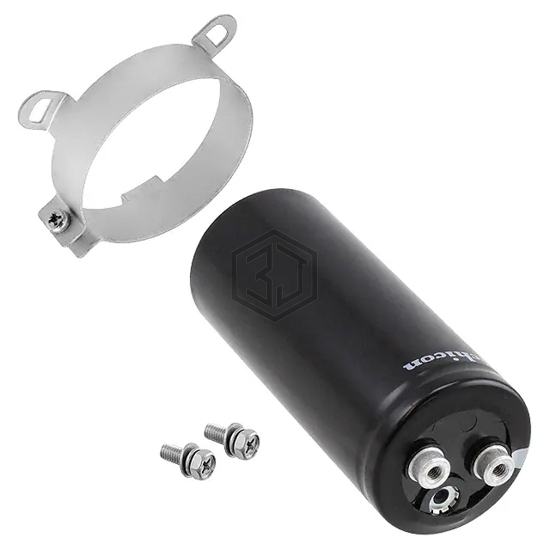

CAP ALUM 1500UF 20% 450V SCREW
LNT2W152MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.88 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.843" (123.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for LNT2W152MSEF and get a quote within 24 hours.
