CAP ALUM 3300UF 20% 250V SCREW

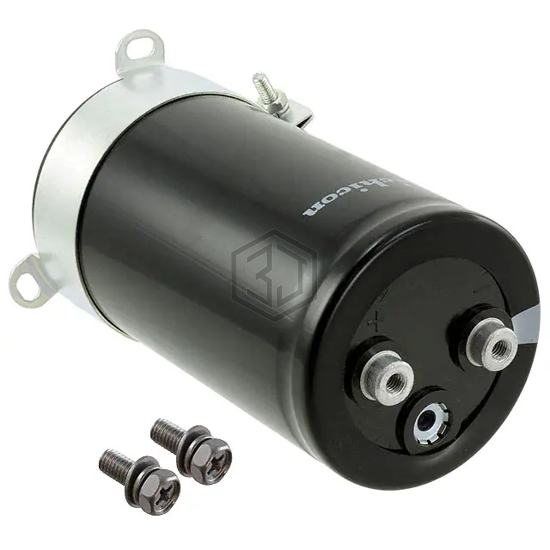

LNT2E332MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 250V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,921
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.16 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT2D332MSE | Nichicon | CAP ALUM 3300UF 20% 200V SCREW | 89% | View |
| LNT2C332MSE | Nichicon | CAP ALUM 3300UF 20% 160V SCREW | 81% | View |
| E32D251HPN332MC79U | United Chemi-Con | CAP ALUM 3300UF 20% 250V SCREW | 78% | View |
| MAL210422332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 200V SCREW | 70% | View |
| 550C332M450DE2GS | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 450V SCREW | 62% | View |
| E32D451LPN332TEE3U | Chemi-Con | CAP ALUM 3.3MF 450V SCREW CHAS M | 62% | View |
Submit your RFQ for LNT2E332MSE and get a quote within 24 hours.
