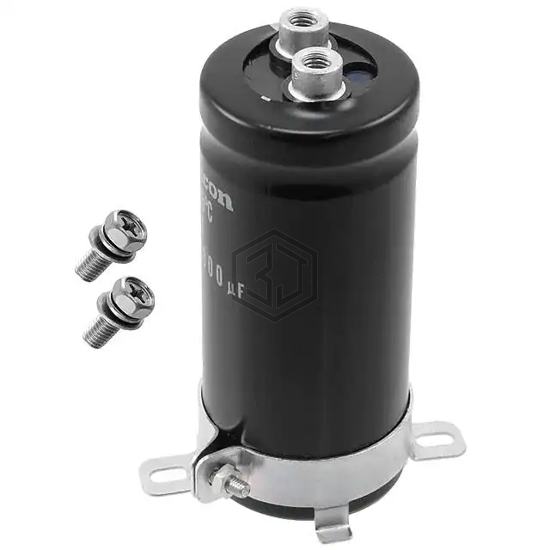

CAP ALUM 3300UF 20% 100V SCREW
LNT2A332MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,817
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.795 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D101HPN332UDA5M | United Chemi-Con | CAP ALUM 3300UF 100V SCREW | 100% | View |
| B41580A9338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 100V SCREW | 82% | View |
| B41550E9338Q000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 100V SCREW | 71% | View |
| E32D600LPN332MA67U | United Chemi-Con | CAP ALUM 3300UF 20% 60V SCREW | 67% | View |
| E32D351CDS332MEA5U | United Chemi-Con | CAP ALUM 3300UF 20% 350V SCREW | 56% | View |
| 550C332T450DE2BS | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 450V SCREW | 56% | View |
