CAP ALUM 6800UF 20% 80V SCREW

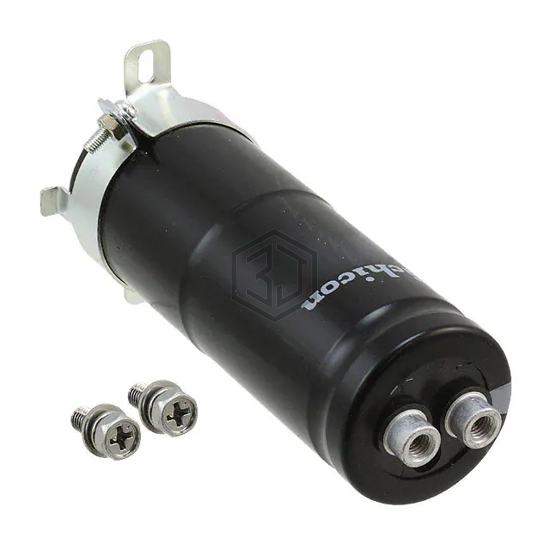

LNT1K682MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.485 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SWAA120682M080B | KYOCERA AVX | SERIES: SWA/ CASE: A12/ CAP: 068 | 93% | View |
| E32D101HPN682UEE3N | United Chemi-Con | CAP ALUM 6800UF 100V SCREW | 86% | View |
| E32D630LPS682MC48M | United Chemi-Con | CAP ALUM 6800UF 20% 63V SCREW | 85% | View |
| SWAB100682M100B | KYOCERA AVX | SERIES: SWA/ CASE: B10/ CAP: 068 | 81% | View |
| LNT2A682MSEN | Nichicon | CAP ALUM 6800UF 20% 100V SCREW | 73% | View |
| E32D800HLN682MA79U | United Chemi-Con | CAP ALUM 6800UF 20% 80V SCREW | 60% | View |
