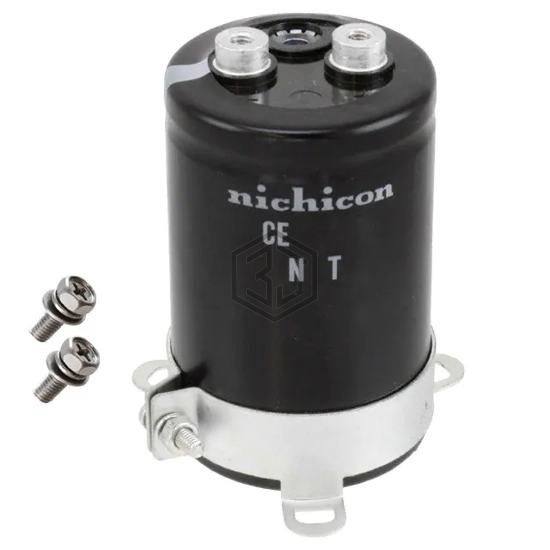

CAP ALUM 47000UF 20% 25V SCREW
LNT1E473MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,680
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.545 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35LSW47000MNB51X98 | Rubycon | CAP ALUM 47000UF 20% 35V SCREW | 83% | View |
| 35LSW47000M51X98 | Rubycon | CAP ALUM 47000UF 20% 35V SCREW | 83% | View |
| LNT1V473MSEN | Nichicon | CAP ALUM 47000UF 20% 35V SCREW | 83% | View |
| LNT1C473MSEN | Nichicon | CAP ALUM 47000UF 20% 16V SCREW | 80% | View |
| B41560A7479M000 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 40V SCREW | 64% | View |
| LNT1H473MSEN | Nichicon | CAP ALUM 47000UF 20% 50V SCREW | 64% | View |
