CAP ALUM 33000UF 20% 10V SCREW

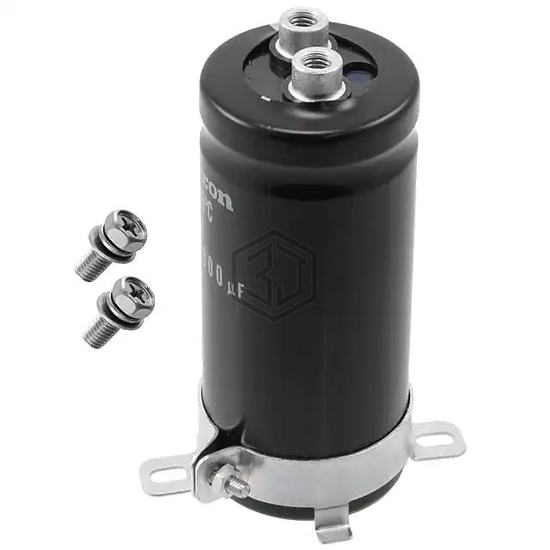

LNT1A333MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33000UF 20% 10V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - Screw Terminals.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D1C1CHS353TEE3U | United Chemi-Con | CAP ALUM 35000UF SCREW | 92% | View |
| LNT1C333MSE | Nichicon | CAP ALUM 33000UF 20% 16V SCREW | 82% | View |
| LNT1E333MSE | Nichicon | CAP ALUM 33000UF 20% 25V SCREW | 67% | View |
| LNT1V333MSE | Nichicon | CAP ALUM 33000UF 20% 35V SCREW | 58% | View |
| E32D630HLS333QD79U | United Chemi-Con | CAP ALUM 33000UF 63V SCREW | 56% | View |
| LNT1H333MSE | Nichicon | CAP ALUM 33000UF 20% 50V SCREW | 54% | View |
Submit your RFQ for LNT1A333MSE and get a quote within 24 hours.
