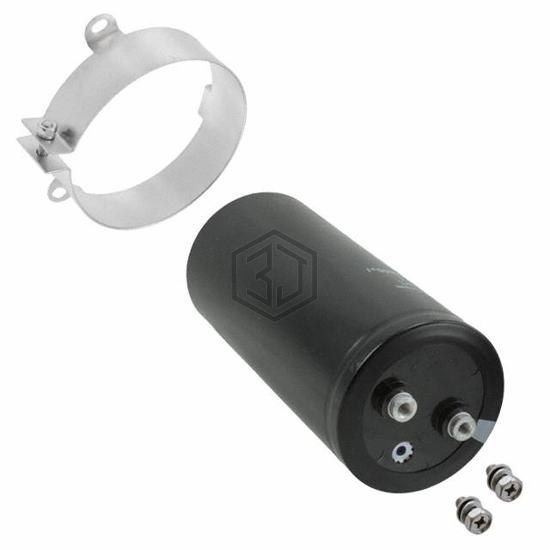

CAP ALUM 1.5F 20% 10V SCREW
LNT1A155MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1.5F 20% 10V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - Screw Terminals.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1.5 F |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 25.415 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 8.819" (224.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for LNT1A155MSE and get a quote within 24 hours.
