CAP ALUM 68000UF 20% 100V SCREW

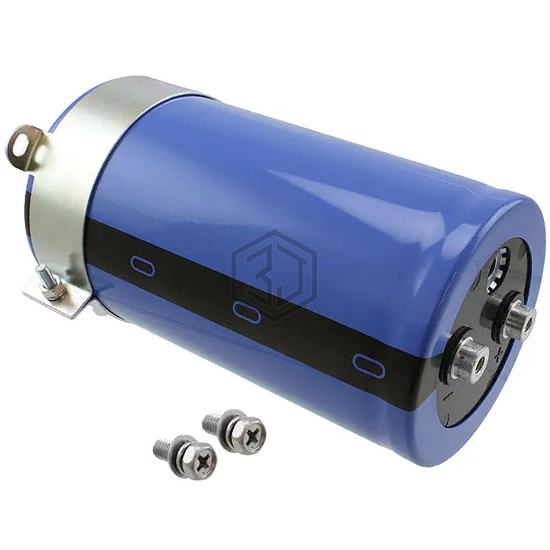

LNR2A683MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,995
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.93 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.630" (143.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210178683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 63V SCREW | 78% | View |
| LNT1J683MSEN | Nichicon | CAP ALUM 68000UF 20% 63V SCREW | 78% | View |
| E32D630CSN683MEA5Q | United Chemi-Con | CAP ALUM 68000UF 20% 63V SCREW | 70% | View |
| MAL210656683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 25V SCREW | 64% | View |
| LNT1V683MSE | Nichicon | CAP ALUM 68000UF 20% 35V SCREW | 60% | View |
| LNR1H683MSEN | Nichicon | CAP ALUM 68000UF 20% 50V SCREW | 55% | View |
Submit your RFQ for LNR2A683MSE and get a quote within 24 hours.
