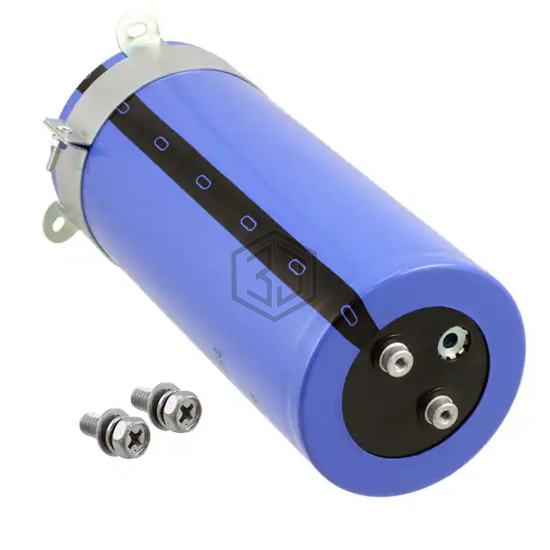

CAP ALUM 150000UF 20% 100V SCREW
LNR2A154MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150000UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,092
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 A @ 120 Hz |
| Ripple Current @ High Frequency | 31.05 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 8.780" (223.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT2A154MSEB | Nichicon | CAP ALUM 150000UF 20% 100V SCREW | 94% | View |
| ALS71H154QH063 | KEMET | CAP ALUM 150000UF 20% 63V SCREW | 81% | View |
| LNT1H154MSEN | Nichicon | CAP ALUM 150000UF 20% 50V SCREW | 70% | View |
| MAL210167154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 68% | View |
| MAL210186154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 25V SCREW | 64% | View |
| B41456B7150M003 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 40V SCREW | 63% | View |
