CAP ALUM 330000UF 20% 80V SCREW

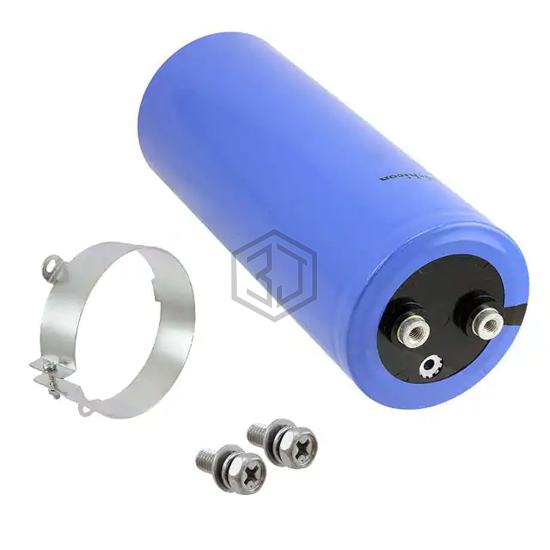

LNR1K334MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,268
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 36.57 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.634" (41.50mm) |
| Size / Dimension | 3.937" Dia (100.00mm) |
| Height - Seated (Max) | 10.000" (254.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS80H334QT063 | KEMET | CAP ALUM 330000UF 20% 63V SCREW | 89% | View |
| ALS71A334QS063 | KEMET | CAP ALUM 330000UF 20% 63V SCREW | 82% | View |
| MAL210188334E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330000UF 20% 63V SCREW | 80% | View |
| LNT1H334MSEN | Nichicon | CAP ALUM 330000UF 20% 50V SCREW | 79% | View |
| ALS80H334QP040 | KEMET | CAP ALUM 330000UF 20% 40V SCREW | 76% | View |
| ALS71H334MF025 | KEMET | CAP ALUM 330000UF 20% 25V SCREW | 70% | View |
Submit your RFQ for LNR1K334MSE and get a quote within 24 hours.
