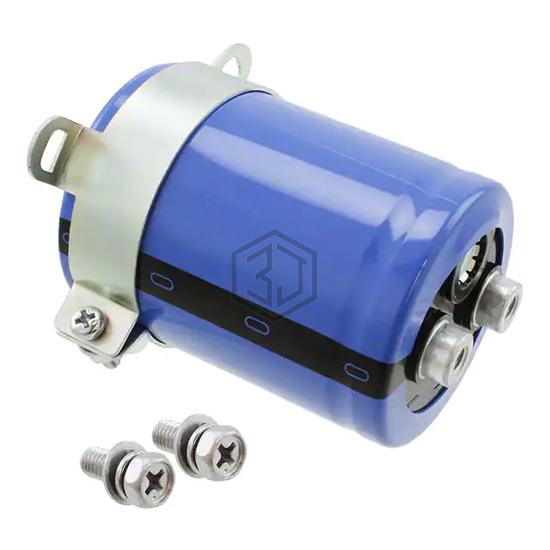

CAP ALUM 33000UF 20% 50V SCREW
LNR1H333MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,459
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7 A @ 120 Hz |
| Ripple Current @ High Frequency | 8.05 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 2.874" (73.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500LPN333UEA5M | United Chemi-Con | CAP ALUM 33000UF 50V SCREW | 100% | View |
| E36D400HPN333TC92U | United Chemi-Con | CAP ALUM 33000UF 40V SCREW | 86% | View |
| CGS333U016R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 33000UF 16V SCREW | 70% | View |
| MAL210127333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 20% 40V SCREW | 69% | View |
| ALS30A333KE040 | KEMET | CAP ALUM 33000UF 20% 40V SCREW | 59% | View |
| MAL210618333E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33000UF 63V SCREW | 55% | View |
Submit your RFQ for LNR1H333MSE and get a quote within 24 hours.
