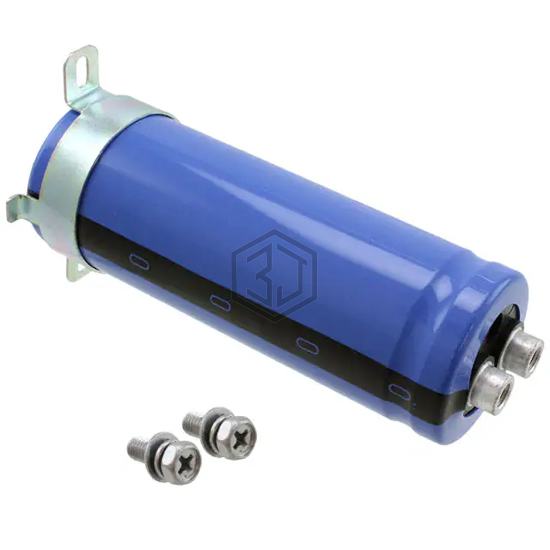

CAP ALUM 22000UF 20% 50V SCREW
LNR1H223MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,225
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.015 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.055" (103.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50LSQ22000MEFC36X98 | Rubycon | CAP ALUM 22000UF 20% 50V SCREW | 99% | View |
| SWAB120223M063B | KYOCERA AVX | SERIES: SWA/ CASE: B12/ CAP: 022 | 90% | View |
| E36D630HPN223MAA5C | Chemi-Con | CAP ALUM 22MF 20% 63V SCREW CHAS | 85% | View |
| E36D750LPN223TCB7U | Chemi-Con | CAP ALUM 22MF 75V SCREW CHAS MT | 74% | View |
| ALS80H223DF063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 60% | View |
| ALS31A223KE063 | KEMET | CAP ALUM 22000UF 20% 63V SCREW | 56% | View |
Submit your RFQ for LNR1H223MSE and get a quote within 24 hours.
