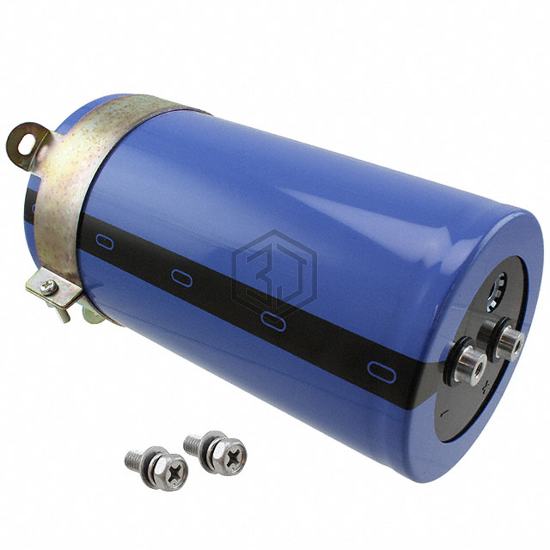

CAP ALUM 470000UF 20% 25V SCREW
LNR1E474MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 35.42 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for LNR1E474MSE and get a quote within 24 hours.
