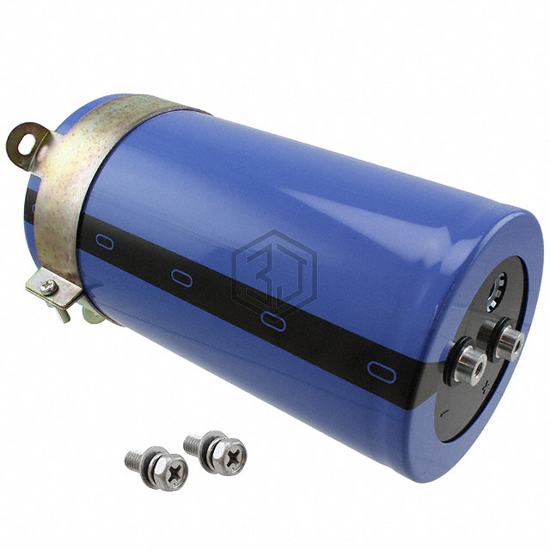

CAP ALUM 680000UF 20% 16V SCREW
LNR1C684MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,182
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 6.811" (173.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41456B4680M000 | EPCOS - TDK Electronics | CAP ALUM 680000UF 20% 16V SCREW | 92% | View |
| LNT1C684MSEB | Nichicon | CAP ALUM 680000UF 20% 16V SCREW | 90% | View |
| LNT1C684MSEN | Nichicon | CAP ALUM 680000UF 20% 16V SCREW | 90% | View |
| ALS70C684NW025 | KEMET | CAP ALUM 680000UF 20% 25V SCREW | 82% | View |
| ALS70A684NW025 | KEMET | CAP ALUM 680000UF 20% 25V SCREW | 82% | View |
| ALS81A684NW025 | KEMET | CAP ALUM 680000UF 20% 25V SCREW | 77% | View |
Submit your RFQ for LNR1C684MSE and get a quote within 24 hours.
