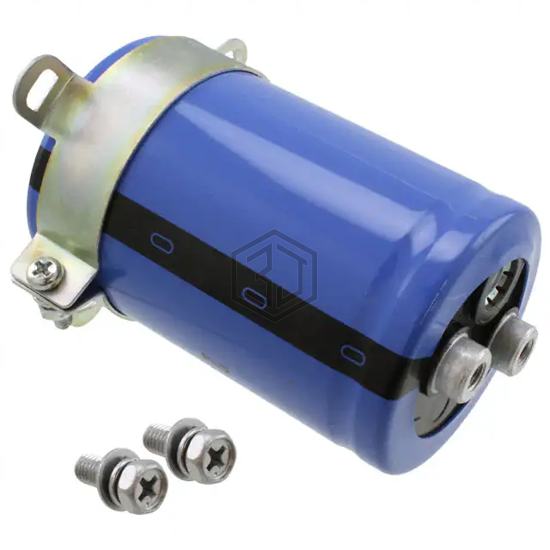

CAP ALUM 150000UF 20% 10V SCREW
LNR1A154MSE is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150000UF 20% 10V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,004
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.7 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.305 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 3.268" (83.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41458B4150M000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 16V SCREW | 70% | View |
| LNR1E154MSE | Nichicon | CAP ALUM 150000UF 20% 25V SCREW | 62% | View |
| LNR1H154MSEB | Nichicon | CAP ALUM 150000UF 20% 50V SCREW | 52% | View |
| B41458B5150M003 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 25V SCREW | 51% | View |
| MAL210137154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 50% | View |
| MAL210177154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 50% | View |
Submit your RFQ for LNR1A154MSE and get a quote within 24 hours.
