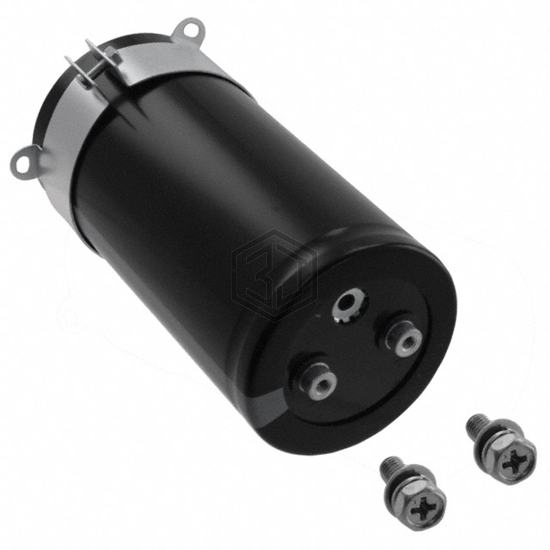

CAP ALUM 5600UF 20% 350V SCREW
LNK2V562MSEH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 5600UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,601
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 23.52 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 3.937" (100.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LQR2V562MSEH | Nichicon | CAP ALUM 5600UF 20% 350V SCREW | 92% | View |
| ALS71C562QH500 | KEMET | CAP ALUM 5600UF 20% 500V SCREW | 89% | View |
| ERWE401LGN562MED0U | United Chemi-Con | CAP ALUM 5600UF 20% 400V SCREW | 89% | View |
| LNT2V562MSEGBB | Nichicon | CAP ALUM 5600UF 20% 350V SCREW | 86% | View |
| LNU2W562MTEJ | Nichicon | CAP ALUM 5600UF 20% 450V SCREW | 85% | View |
| LQR2G562MSEHBN | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 84% | View |
Submit your RFQ for LNK2V562MSEH and get a quote within 24 hours.
