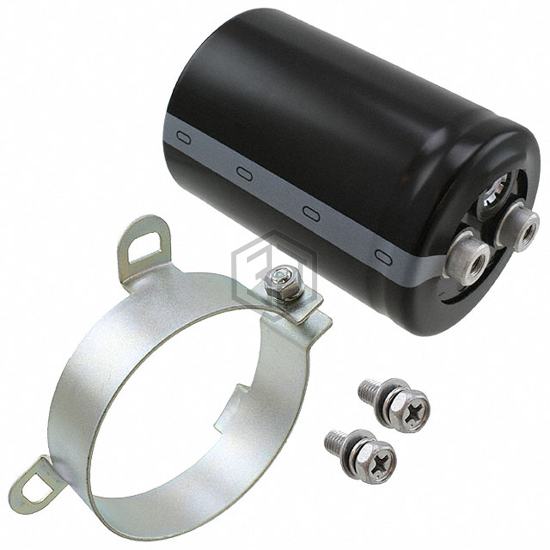

CAP ALUM 1500UF 20% 350V SCREW
LNK2V152MSEF is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,322
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.1 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.866" (22.00mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 2.953" (75.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D351LPN152TC92U | United Chemi-Con | CAP ALUM 1500UF 350V SCREW | 100% | View |
| DCMC152T400EC2A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 400V SCREW | 91% | View |
| B43455C5158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 450V SCREW | 88% | View |
| B43742A6158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 500V SCREW | 85% | View |
| MAL210247152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 450V SCREW | 82% | View |
| LNT2W152MSEFBN | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 76% | View |
