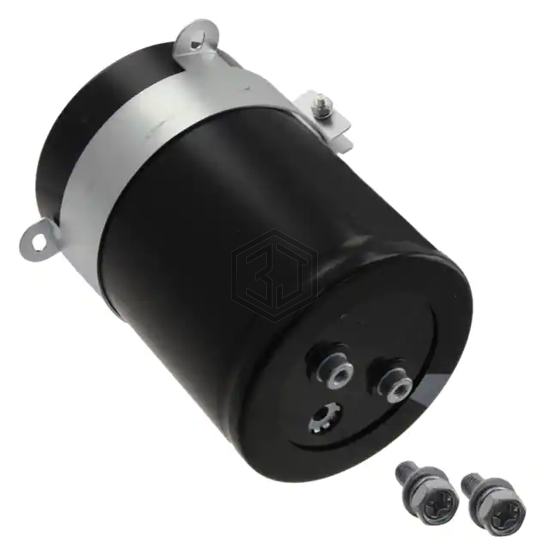

CAP ALUM 12000UF 20% 350V SCREW
LNK2V123MSEJ is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 12000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 28.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 39.76 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.543" Dia (90.00mm) |
| Height - Seated (Max) | 5.906" (150.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2V123MSEHBB | Nichicon | CAP ALUM 12000UF 20% 350V SCREW | 100% | View |
| E37X401CPN123MEM9U | United Chemi-Con | CAP ALUM 12000UF 20% 400V SCREW | 95% | View |
| LNX2V123MSEHBB | Nichicon | CAP ALUM 12000UF 20% 350V SCREW | 94% | View |
| LNX2V123MSEJBN | Nichicon | CAP ALUM 12000UF 20% 350V SCREW | 94% | View |
| LNU2G123MTEJ | Nichicon | CAP ALUM 12000UF 20% 400V SCREW | 93% | View |
| MAL250137123E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 12000UF 20% 450V SCREW | 87% | View |
Submit your RFQ for LNK2V123MSEJ and get a quote within 24 hours.
